Compact Paper Band Filter

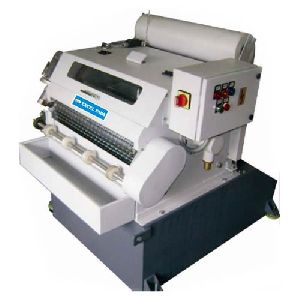

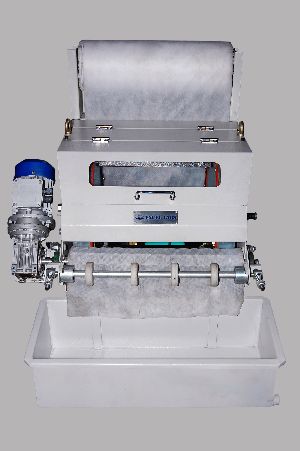

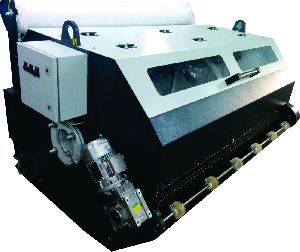

Compact Paper Band Filter

We offer Compact Paper Band Filter that is fabricated for coolant filtration of fluids. These Compact Paper Band Filters are mounted on rollers that provide easy shifting during the cleaning of tank. Compact Paper Band Filters provided by us do not have an electrical panel and the dirty filter paper is wounded on a mandrel that gives the easy disposal, wherein the dirt is collectively stored in a bin. These Compact Paper Band Filter work in a way that, firstly the working fluid with dirt is exposed to finned magnetic separator, and then the fluid is dropped in paper band trough. Furthermore, the float-actuated clutch forms motion from a common drive and indexes dirty filter paper.

Features
  • Forms deeper trough compared to a paper band filter
  • This requires lesser area for same fluid flow
  • Totally automatic operation

Ideal For : Fine coolant filtration for honing, grinding, lapping and gun drilling of small machines.
